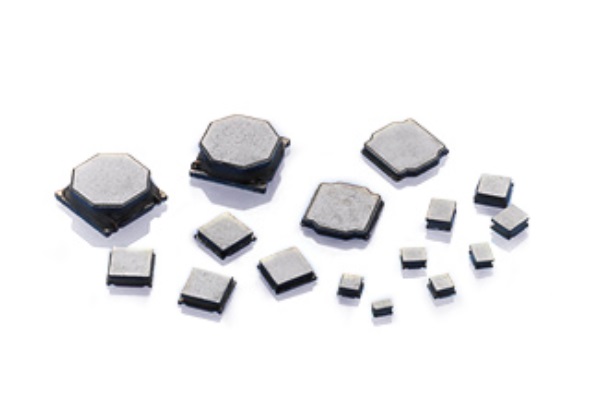

Shielded Type - Sealed

Series Type	L(uH)	DCR(mΩ)	Isat(A)	Irms(A)	LxWxH(mm) Max
SDEB12101T	0.22~10	50~1500	0.32~2.4	0.32~1.9	1.2x1.45x1.0
SDEK12101T	2.2	316	0.8	0.7	1.2x1.45x1.0
SDEK16081T	0.22~2.2	51~597	0.68~3	0.76~2.5	0.9x1.7x1.0
SDEK20121T	0.47~4.7	58~654	0.72~3.1	0.63~2.2	1.3x2.1x1.0
SDED20161T	0.24~47	26.5~3450	0.18~3.83	0.18~4	1.7x2.1x1.0
SDEM20161T	0.24~10	20~1010	0.72~6.1	0.63~5	1.7x2.1x1.0
SDER20161T	0.68~2.2	35~106	0.8~1.75	1.6~2.8	1.7x2.1x1.0
SDET25200H	0.47~10	49~1020	0.5~2.2	0.54~2.8	2.2x2.7x0.8
SDEM25201T	0.24~22	19~1200	0.6~7.0	0.45~4.6	2.2x2.7x1.0
SDET25201T	0.24~10	29~609	0.65~4.6	0.72~3.6	2.2x2.7x1.0
SDEM25201B	0.33~22	23~1200	0.68~7.0	0.52~4.6	2.2x2.7x1.2
SDET25201B	0.47~10	24~409	0.79~3.9	0.72~3.7	2.2x2.7x1.2
SDER031T	1~22	67~850	0.43~2.9	0.55~2.6	3.2x3.2x1.0
SDER031B	1.5~47	60~2695	0.33~3.1	0.32~2.2	3.2x3.2x1.2
SDET32251B	1~10	51~488	1~3.5	0.72~2.6	2.7x3.4x1.2
SDET32251E	4.7	90	1.3	1.9	2.7x3.4x1.5
SDER041T	4.7~10	130~350	0.9~1.25	0.99~1.4	4.2x4.2x1.0
SDER041B	0.47~22	30~492	0.63~4.0	0.86~3.9	4.2x4.2x1.2
SDER041H	2.2~47	35~594	0.52~3.1	0.72~3.1	4.2x4.2x1.8
SDER043T	2.2~120	28~1250	0.57~3.7	0.55~3.7	4.2x4.2x3.0
SDES052T	1.0~10	17~137	1.5~6.3	1.62~4.8	5.1x5.1x2.0
SDES053T	1~68	15~634.8	1~8.45	0.77~7.65	5.1x5.1x3.0
SDEI054T	4.7~100	27~589	0.9~5.00	0.8~3.60	5.1x5.1x4.0
SDES064T	6.8~120	31~540	0.82~4.1	0.81~4.2	6.2x6.2x4.0
SDES064E	6.8~100	31~510	0.95~3.90	0.95~3.60	6.2x6.2x4.5
